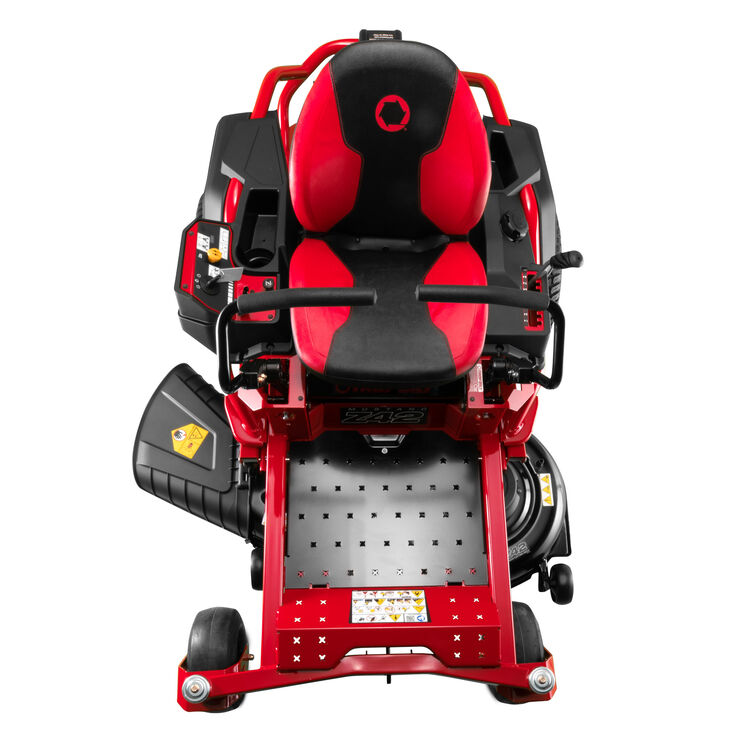

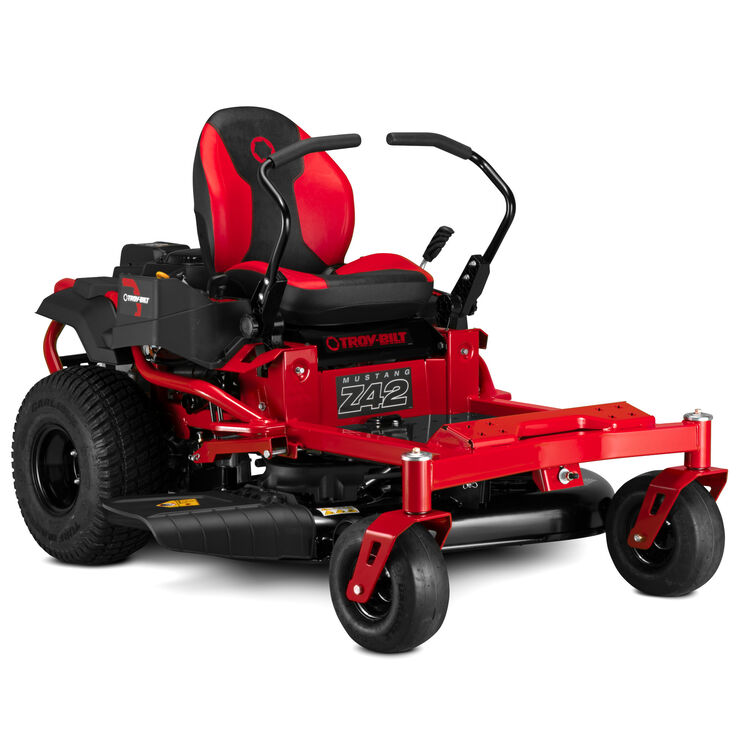

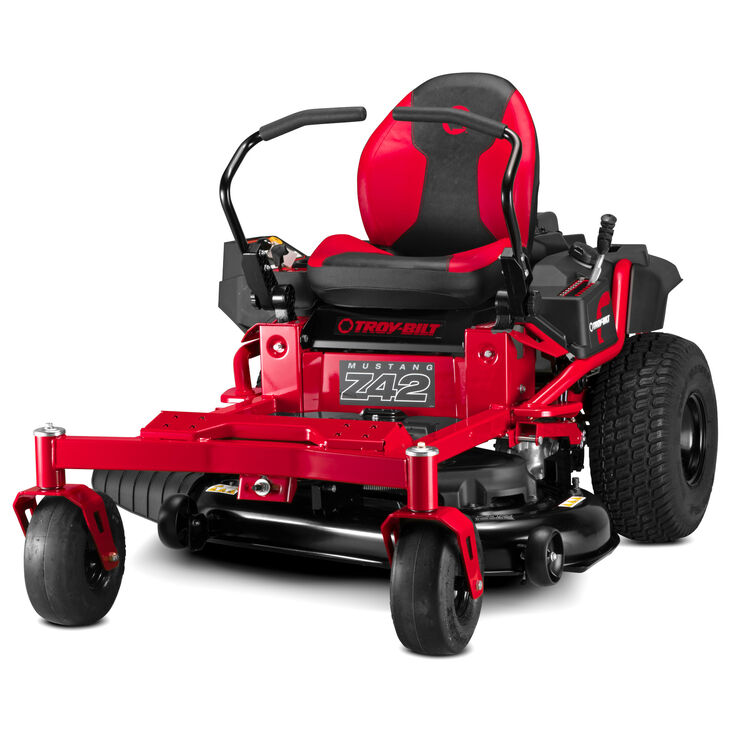

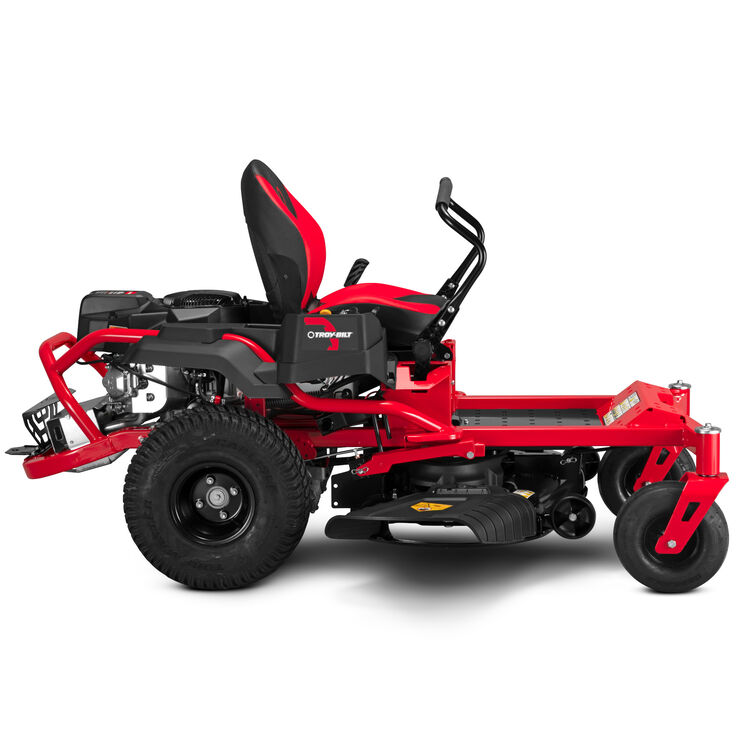

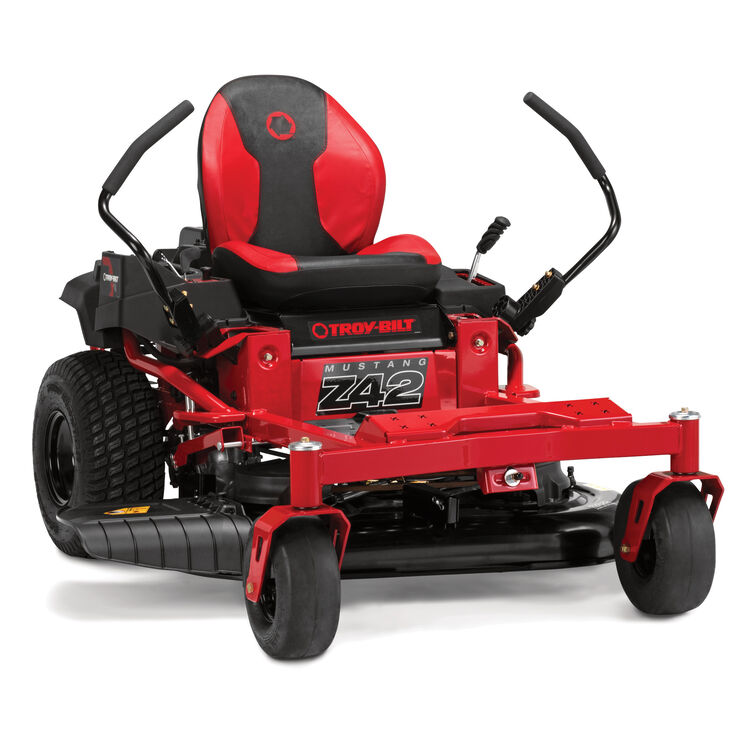

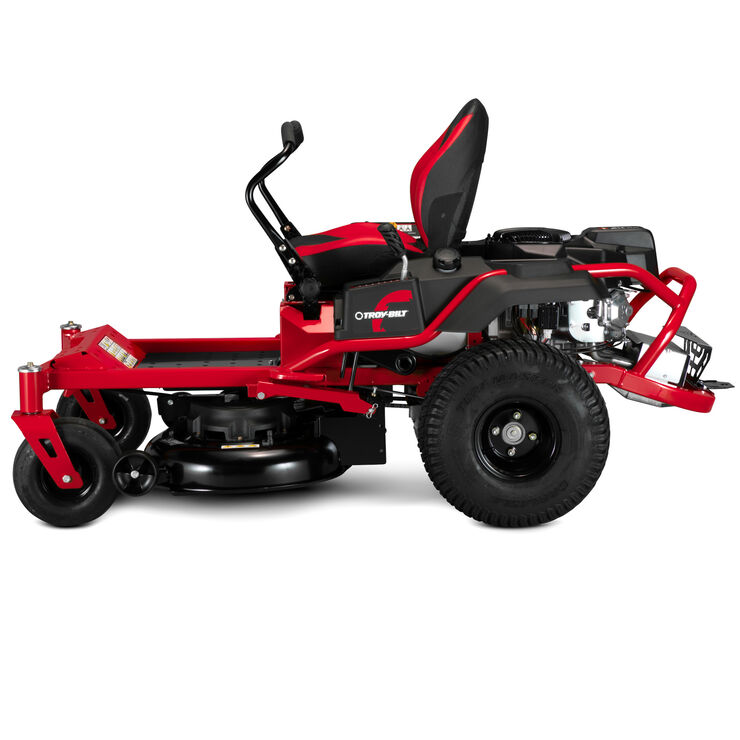

Mustang Z42 Zero-Turn Mower
Item#:
17ARFACSA66
price.from
$3,099.00
price.msrp
Mustang Z42 Zero-Turn Mower
Item#:
17ARFACSA66
price.from
$3,099.00
price.msrp

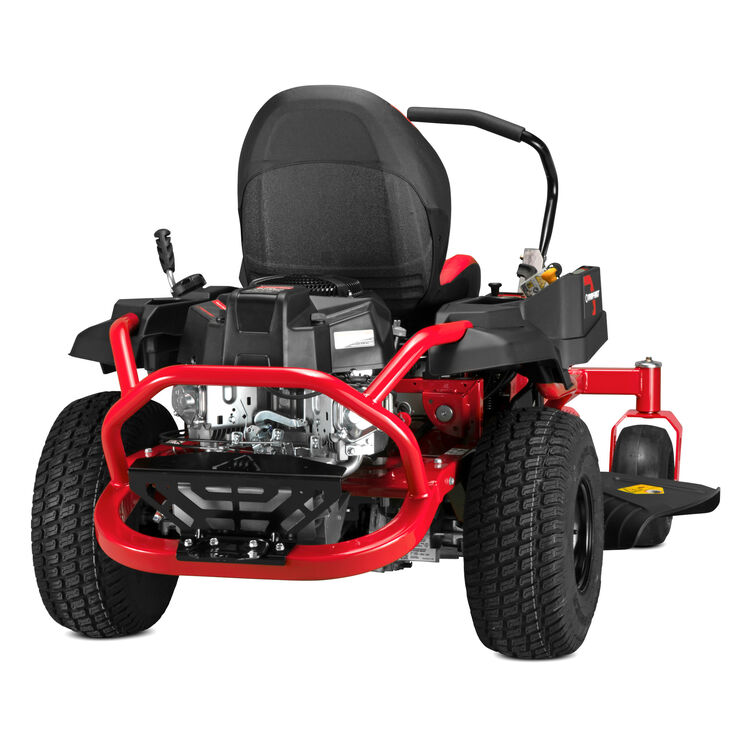

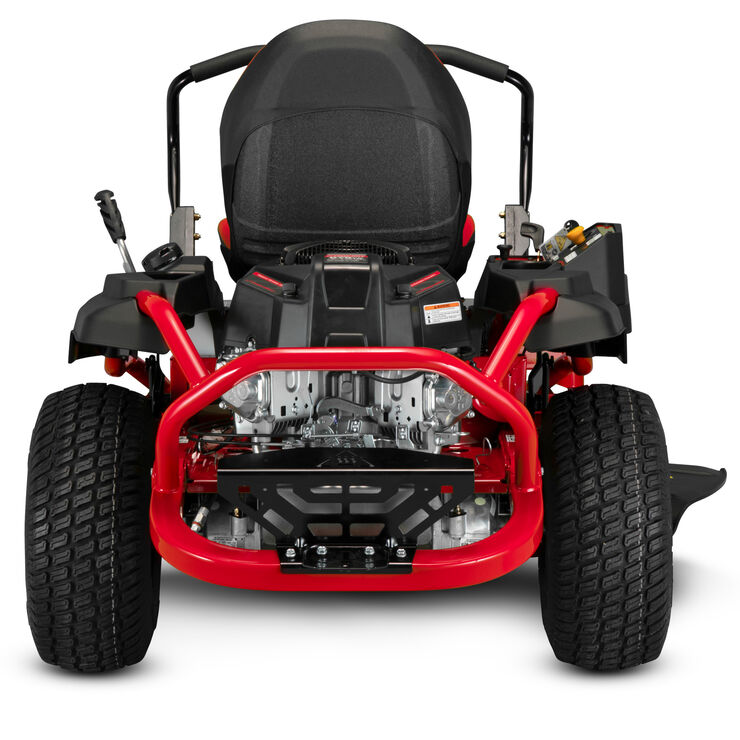

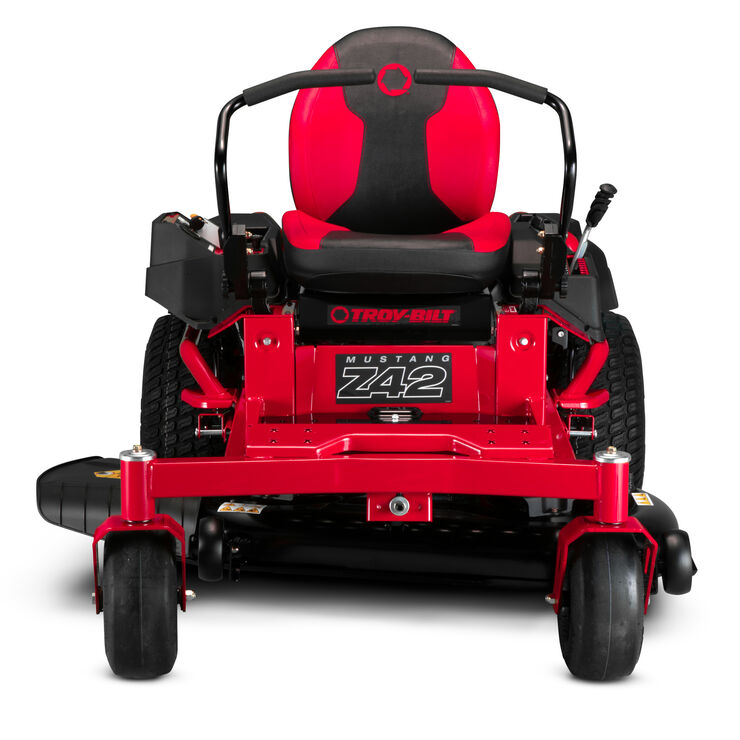

Quickly mow large areas with ease thanks to the Troy-Bilt Mustang Z42 zero-turn riding lawn mower. The Mustang Z42 provides elite durability and dependable performance in rugged conditions thanks to its heavy-duty, fully welded frame. A 42" rugged steel deck features with anti-scalp wheels to prevent turf damage. Dual hydrostatic transmissions provide a true zero-turn performance with quicker mow times and effortless mobility. A powerful 725cc twin-cylinder KOHLER engine delivers reliable power and a quieter, more balanced performance with less vibration. A high back seat and padded lap bars allow you to ride in comfort and enjoy your cut. With a 3-year limited warranty and limited lifetime frame warranty, you can count on Troy-Bilt to help make yard work easier.
Documents and Guides
- Powerful 22 HP*/725cc KOHLER® twin-cylinder engine designed to deliver quiet, balanced performance
- Full-length, fully welded, 2" tubular steel frame is designed to absorb impact, provide stability and is covered by a limited lifetime warranty
- Dual hydrostatic transmissions deliver true zero-turn performance and are designed to help quickly cut and maneuver around obstacles while mowing
- 42" twin blade cutting deck with two anti-scalp deck wheels helps prevent turf damage and is engineered to deliver a clean, even cut.
- Zero-Turn Mower
You May Also Like
![SEAT-18" 4 PT MTG TROY](https://www.troybilt.com/dw/image/v2/BCSH_PRD/on/demandware.static/-/Sites-mtd-master-catalog/default/dwa24d8b05/products/757-05887_5.jpg?sw=280&sh=280&sm=fit "SEAT-18" 4 PT MTG TROY")
Mustang Z42 Zero-Turn Mower Features
Heavy-Duty Frame
Heavy-duty 2" tubular frame absorbs impact, provides maximum stability and is covered by a limited lifetime warranty.
Increased Comfort
Ride in more comfort and with reduced vibration thanks to the high-back seat and foam grip steering controls.
Easy Blade Engagement
Quickly engage the cutting deck with conveniently located, console-mounted knob.
Safety First
Lap bar controls have an integrated parking brake to safely and quickly stop the mower.
Deck Wash
Attach a standard garden hose to the deck wash port to quickly clean underside of deck and prevent buildup of clippings
Quickly Adjust Cutting Height
8-position height adjustment on the fender makes it easy to change cutting heights from 1.5" - 4"
Reduced Turf Damage
Anti-scalp deck wheels and Turf Master tires keep your lawn looking beautiful.
Easier Clean-Up
Make yard clean up easier by using an available rear bagger to collect grass clippings and leaves for composting or disposal.
Versatile Performance
Convenient rear hitch makes attaching available tow-behind attachments, like dump carts, spreaders or aereators, easy and quick.
Pride
Headquartered in Valley City, OH, select Troy-Bilt items are designed, built and tested right here in the U.S.— with U.S. and global parts — from Ohio and Mississippi to Tennessee and Arizona.
Confidence
Limited lifetime warranty on full-length tubular frame and a 3-year limited on other components.
Specs & Maintenance
Engine
- Engine Brand Kohler®
- Engine Model 7000 Series
- Engine Model Number KT725
- Engine Displacement 725cc
- Engine Output 22HP
- Starter Type Electric
- Fuel Tank Capacity 3.5 gallons (13.25 Litres)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qts. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
Drive System
- Transmission Hydro-Gear™ EZT-2200
- Forward Speed 7 MPH / 11.3 Km/H
- Reverse Speed 3.5 MPH / 5.6 Km/H
- Drive System Hydrostatic
- Transmission Housing Cast aluminum
Cutting Deck
- Deck Cutting Width 42 in
- Deck Wash Yes
- Deck Material 13-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Stamped
- Blade(s) 2
- Deck Lift Foot pedal
- Cutting Height Range 1.25"-3.75"
- Anti-Scalping 2 gauge wheels
- Deck Positions 8
Chassis
- Frame 2'' x 2'' tubular steel
- Turning Radius 0°
- ROPS No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
Controls
- Cruise Control No
- Brakes Disc
- Steering Control Lap Bars
Comfort
- Seat Type 18" high back
- Armrests No
- Seat Adjustment Knob
Wheels
- Rear Tires 20''x8-8''
- Front Tires 11''x6''-5''
- Tire Tread Turf Master / Multi Trac
Additional Specifications
- Hour Meter No
- Mulch Kit Available separately
- Headlight(s) No
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Lap Bar Integrated
- Model Number 17ARFACSA66
Warranty
- Residential Warranty 3-year limited
- Frame Warranty Lifetime Limited
- Deck Shell Warranty 3-year limited
- Commercial Warranty No
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Horsepower *As rated by engine manufacturer
Model | Manual | Form Number | |
|---|---|---|---|
| 17ARFACSA66 | MANL:OPER:TRILING:RZ19:DIGEST | ||
| MANL:OPER:TRILING:RZ19:DIGEST | 769-25609B | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-25609C | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-26504 | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-26504A | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-26861 | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-27000 | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-27000A | Download | |
| SHEET:SUP:BILING:EPA:EVP:20-21 | 769-25879 | Download | |
| SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUP:Warranty_Addendum_In | 769-26830 | Download | |
| SHEET:SUPP:WARR/PARTS:TB RZ19 | 769-26345 | Download | |
| SHEET:SUPP:WARR/PARTS:TB RZ19 | 769-26642 | Download | |
| SHEET:SUPP:WARR/PARTS:TB RZ19 | 769-26642A | Download | |
| SHEET:SUPP:WARR/PARTS:TB RZ19 | 769-26642B | Download | |
| SHEET:SUPP:WARR/PARTS:TB RZ19 | 769-26890 | Download | |
| SHEET:SUPP:WARR/PARTS:TB RZ19 | 769-26890A | Download |
