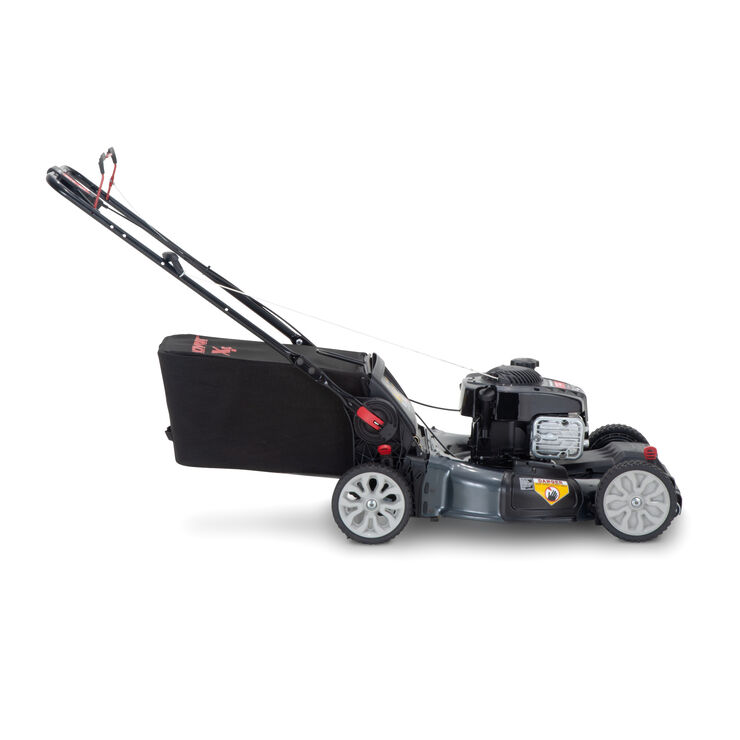

TB220B XP SpaceSavr™ Self-Propelled Mower
Item#:
12BVU2V3B66
price.from
$459.00
price.msrp
TB220B XP SpaceSavr™ Self-Propelled Mower
Item#:
12BVU2V3B66
price.from
$459.00
price.msrp
Or
$77/mo1 No interest if paid in full within 6 months
Interest will be charged from the purchase date if the purchase balance is not paid in full at the end of the promotional period. Advertised minimum payment is greater than required minimum payment.

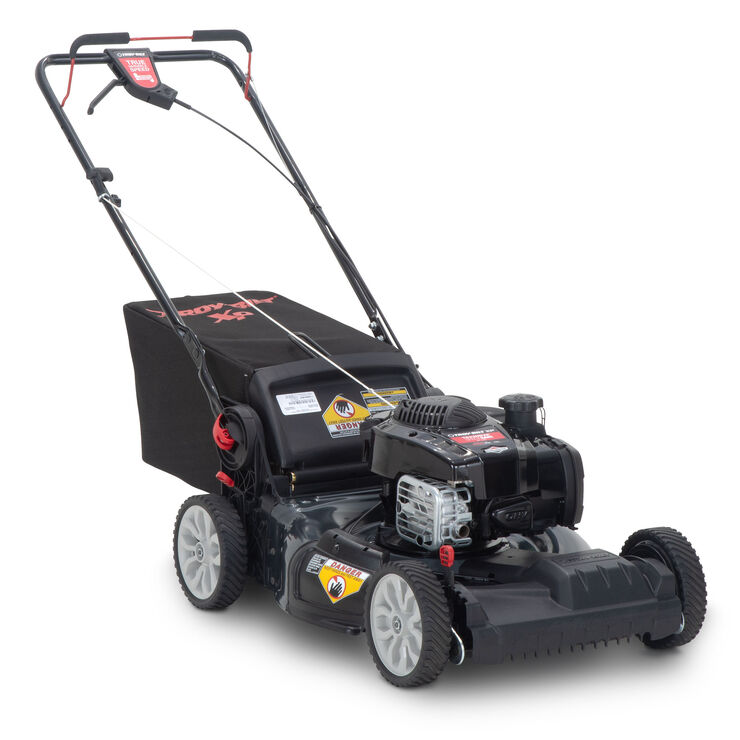

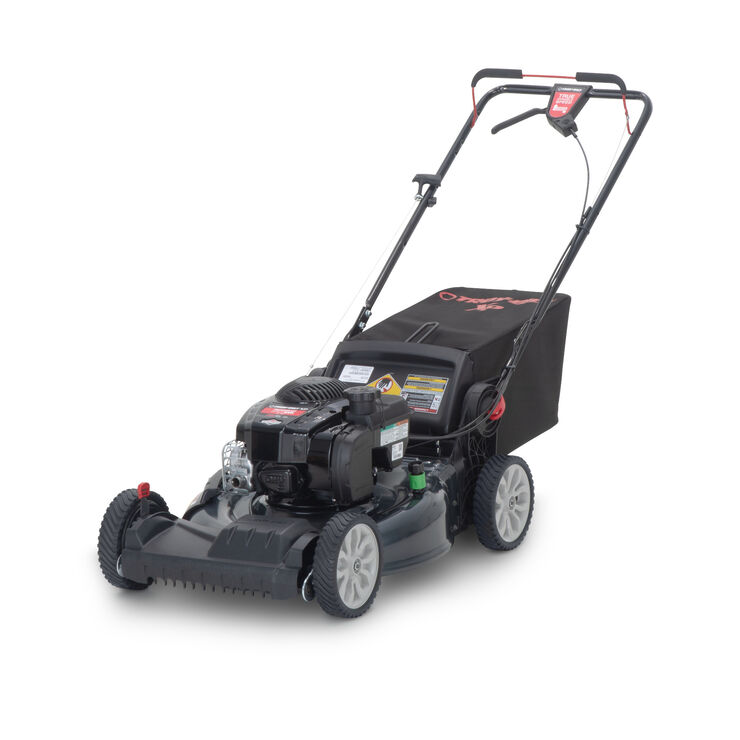

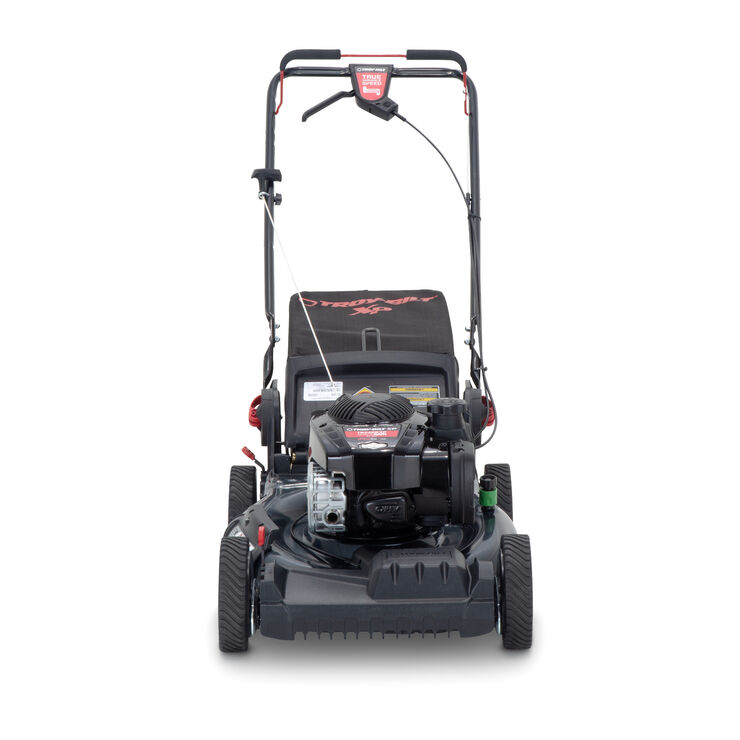

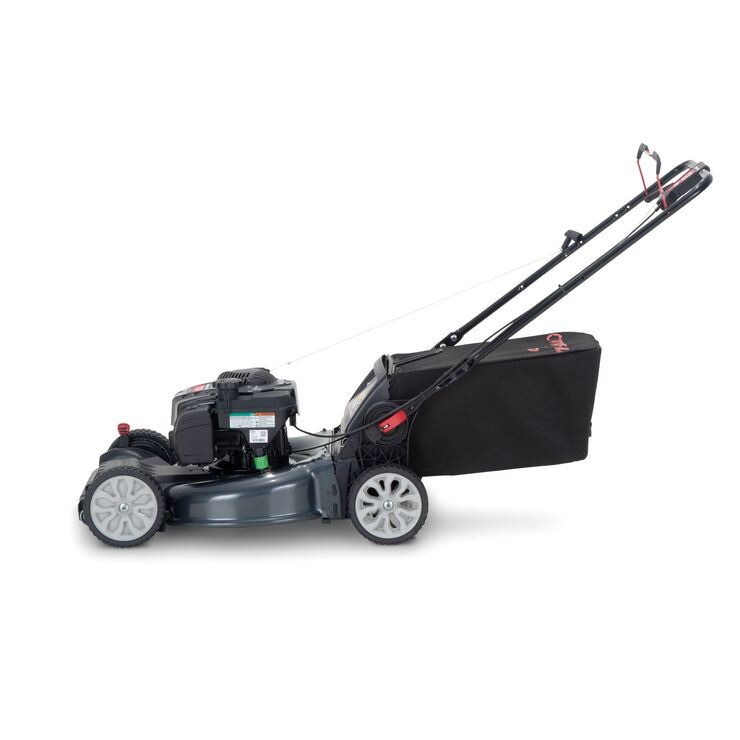

SpaceSavr® technology allows the Troy-Bilt® TB220B XP to be stored flat under a tool bench or in an upright, vertical position against the wall in your garage or shed. Variable speed, front-wheel drive is designed to adjust the mowing speed quickly with a handle-mounted lever. The Briggs & Stratton® ReadyStart® engine is designed for simple, no prime, no choke starting. A 3-in-1 deck design allows you the choice of using the rear bag, mulching mode, or side discharge options that are included.
Documents and Guides
- 150cc Briggs & Stratton® ReadyStart™engine is designed for simple no prime, no choke starting.

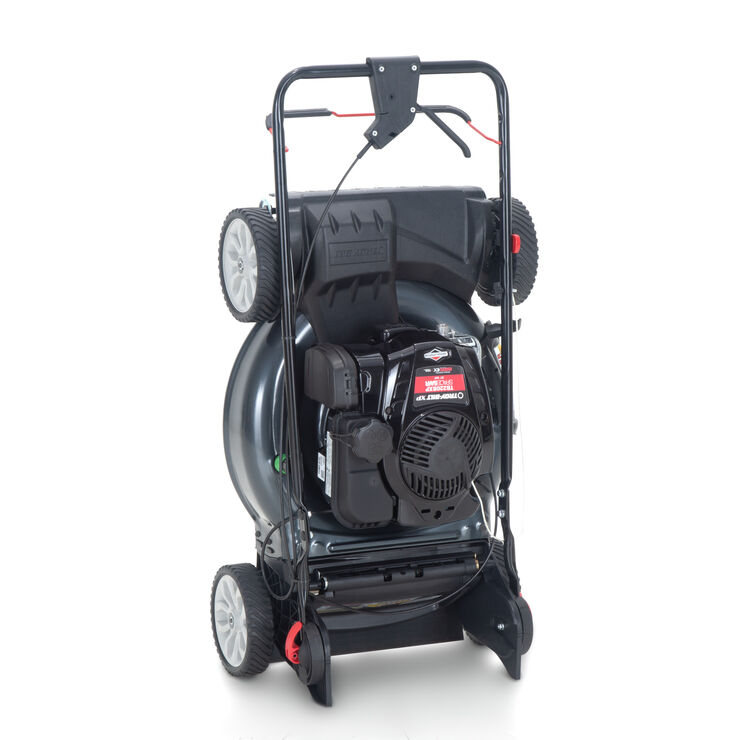

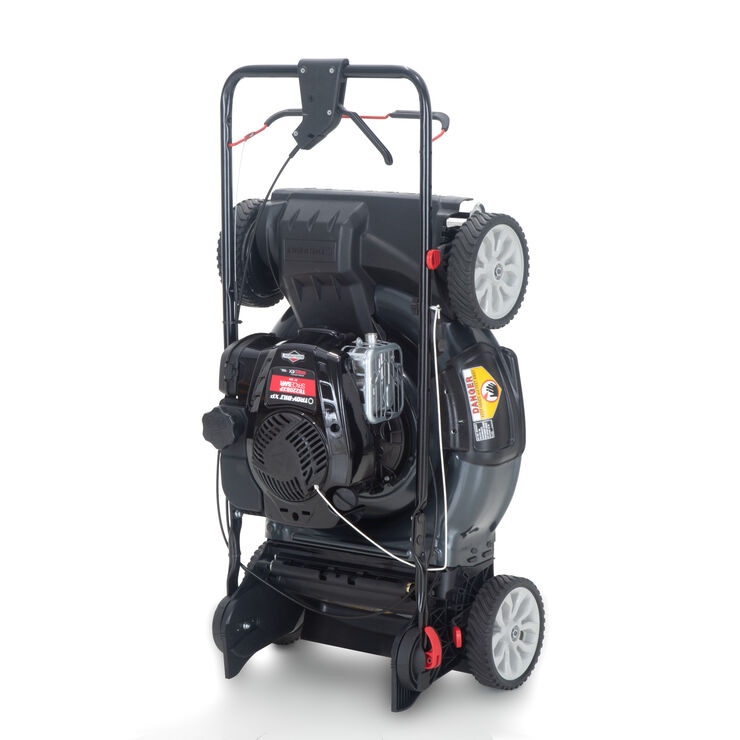

- SpaceSavr™ is designed to be stored flat or in an upright, vertical position, helping to minimize the storage space needed in the garage or shed.
- Variable speed front wheel drive is designed to quickly adjust the speed of the mower and navigate around the yard
- 1.9 bushel rear bag collects grass clippings for easy clean up or composting
TB220B XP SpaceSavr™ Self-Propelled Mower Features
XP Series™
Extra power, durability and comfort features in the Troy-Bilt XP line of mowers
SpaceSavr™

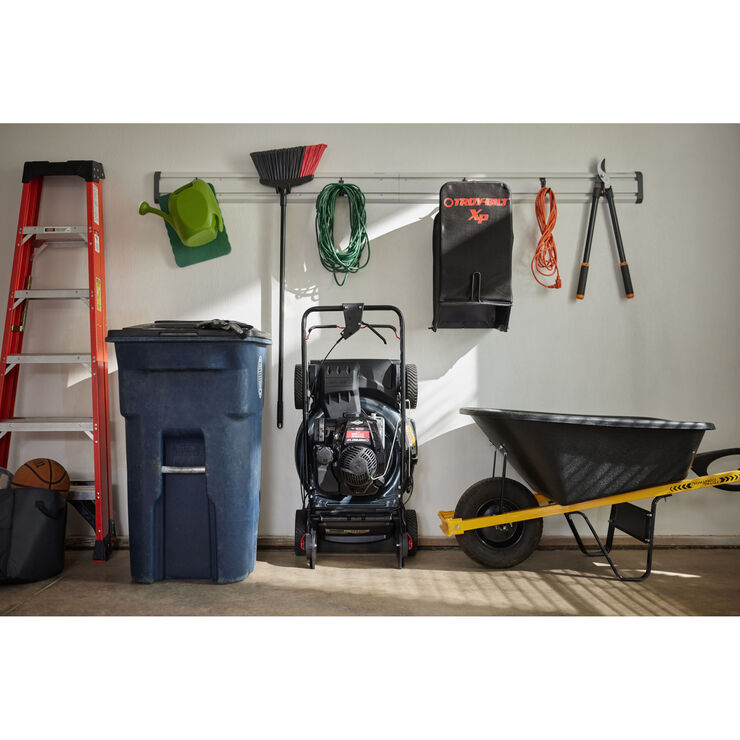

Save up to 70% in storage space by placing in an upright position.
Integrated Mulching Kit
Included mulch kit helps maintain a healthy lawn
Easily Change Cutting Heights
9-position height adjustment makes it easy to change cutting heights from .75" - 2.5".
Side Discharging
Side discharge chute comes with handy, built-in clip to attach handle when not in use.
TriAction Cutting System
TriAction cutting system delivers a well-groomed look to your lawn. The rake bumper, specialized blade and symmetrical deck work together to create finely mulched clippings and a clean, even cut every time.
Easy Clean Up
1.9 bushel rear bag collects grass clippings for easy clean up or composting.
ReadyStart®
Briggs & Stratton ReadyStart® engine with simple no prime, no choke starting.
Easy Maintenance
Deck wash adaptor makes maintenance easier by simply connecting a standard garden hose to rinse clippings from underside of deck

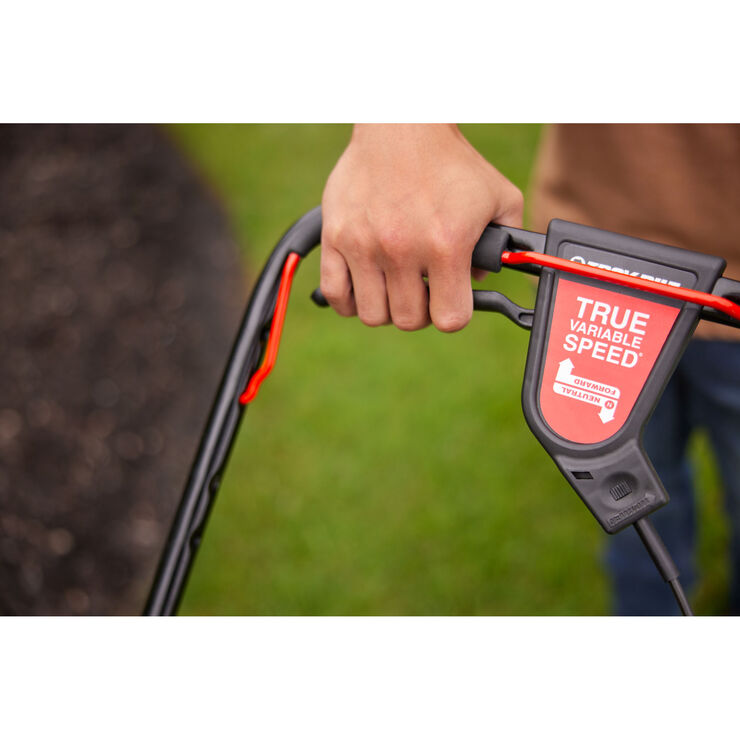

Easier Maneuverability
Get improved control and faster turns with variable speed front wheel drive.
Confidence
3-year limited warranty for extended peace of mind.
Specs & Maintenance
Engine
- Engine Brand Briggs & Stratton®
- Engine Model 625 EXi
- Engine Model Number 093J02-0001
- Engine Displacement 150cc
- Starter Type Recoil
- Fuel Tank Capacity 0.8 qt
- Engine Oil Capacity 15 oz
- Choke ReadyStart
Drive System
- Drive System FWD
Cutting Deck
- Deck Cutting Width 21 in
- Deck Wash Yes
- Deck Material Steel
- Cutting Height Range 1.25" - 3.75"
- Deck Positions 6
- Deck Height Adjustment Dual-Lever
- Cutting System Tri-Action
- Mulch Plug Integrated
- Discharge Location Side
Controls
- Handle Loop
- Drive Controls Single Lever
Wheels
- Tread Pattern S-Wave
- Front Wheels 8 in
- Rear Wheels 8 in
- Bearing Type Poly Bushing
Additional Specifications
- Model Number 12BVU2V3B66
Warranty
- Residential Warranty 3-year limited
- Commercial Warranty No
- Engine Warranty 3-year limited
Grass Collector
- Grass Bag Capacity 1.9 Bushel
- Bagger Type Dust Blocking
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
|---|---|---|---|
| 12BVU2V3B66 | MANL:OPER:BILING:12X:21in GEN: | ||
| MANL:OPER:BILING:12X:21in GEN: | 769-25834A | Download | |
| MANL:OPER:BILING:12X:21in GEN: | 769-26700 | Download | |
| MANL:OPER:BILING:12X:21in GEN: | 769-26862 | Download | |
| MANL:OPER:BILING:12X:21in GEN: | 769-27024 | Download | |
| SHEET:SUP:11X:12XTROY:USCA | 769-26316 | Download | |
| SHEET:SUP:11X:12XTROY:USCA | 769-26679 | Download | |
| SHEET:SUP:11X:12XTROY:USCA | 769-26915 | Download | |
| SHEET:SUP:11X:12XTROY:USCA | 769-27032 | Download |
